HV9780 Titanium Gear High Voltage Tail Servo
$111.61
HV9780 Titanium Gear High Voltage Tail Servo; recommended for 500 class helicopter tail applications.
- Description
- Specifications
Description

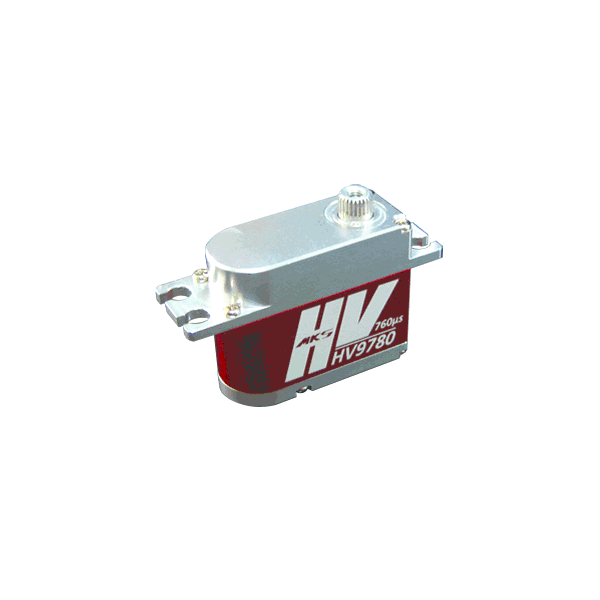

HV9780 Titanium Gear High Voltage Tail Servo
This is an MKS HV9780 Titanium Gear High Voltage Tail Servo with Aluminum Case. This servo is recommended for 500 class helicopter tail applications.
Compatible Gyro’s:
- Spartan DS760, Quark
- Futaba GY611, GY601, GY520
- ALIGN GP700, GP750
- Mikado V-Bar Tail, CSM SL720
- Curtis Youngblood Mini-G, Solid G
- Thunder Tiger TG-7000
- BeastX Mircobeast
| Torque | |
| @6.0V | 45.8 oz-in (3.3 kg-cm) |
| @7.4V | 55.5 oz-in (4.0 kg-cm) |
| @8.2V | 62.4 oz-in (4.5 kg-cm) |
| Speed | |
| @6.0V | 0.055 s |
| @7.4V | 0.045 s |
| @8.4V | 0.040 s |
| Specs | |
| Weight 38.01 g | |
| Dimension | 35.5x15x28.5mm |
| Working Voltage | 5.5 ~ 8.4 V DC Volts (2S Lipo un-regulated) |
| Working Frequency | 760μs / 560hz |
| Dead Band | 0.001 ms (Default) |
| Bearing | 2BB |
| Motor | Coreless Motor |
| Gear | Chrome-Titanium alloy gear |
| Electric Current Draw | 2.6A max.(8.2V)│2.4A max.(7.4V)│2.0A max (6.0V) |
| Wire Length | 29.5 cm |
