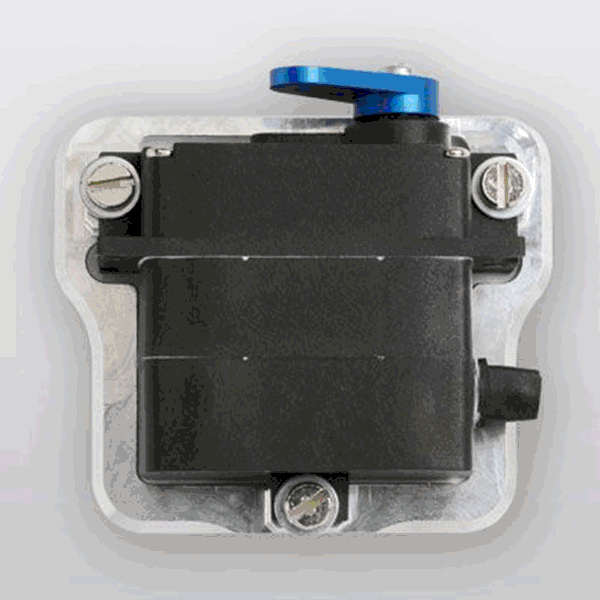

DA 14-05-60 Volz Servo

Description

DA 14-05-60 Volz Servo 14 mm class, 5 volt; it is the power version in the same case design as the DA-14-05-32 servo.

In comparison to the DA 13, the DA 14 offers an improved case design. The DA 14 case is completely sealed and complies with the IP-67 standard (waterproof down to 1 meter and dust tight). The usage of a carbon fiber reinforced plastic material increases its mechanical robustness, torsional stiffness and EMI/RFI shielding.

The fully programmable DA 14 provide all steel gear trains and are available in two case versions: Version A is meant to be directly screwed in place; Version B to be fixed with rubber grommets.

About Volz Servos

A servo from Volz excels due to the simplicity of its design while simultaneously maximizing positioning force, reliability and durability. Moreover, a variety of electric interfaces makes it possible, for instance, to monitor the operating condition of the servos by reading out the current consumption, the internal temperature and humidity, etc.

Every actuator compromises a DC motor, a gear train and control electronics governed by microprocessors with integrated position feedback. These are electromechanical servo units that precisely position a radial output drive.

Depending on the type of actuator, the maximum travel in the standard configuration varies between 90° and 170°. Versions with larger travel of up to 330° or “Multiturn” versions can be provided on request.

About Volz

Founded in 1983, Volz Servos began designing, manufacturing and marketing exclusively electro mechanical actuators/servos worldwide. Volz has developed a product range that meets most customer requirements concerning maximized torque, speed, efficiency, reliability, and durability at minimized volume/weight, component and development costs.  Volz has a reputation for being experts in the market of compact, highly efficient actuators/servos.

Operating Data

Material & Protective Features

Dimensions
