HBL850 Brushless Titanium Gear High Speed Digital Cyclic Servo
$219.99
Product lead time varies.
Contact us for expected delivery date.
HBL850 Brushless Titanium Gear High Speed Digital Cyclic Servo; has high speeds and torque, a brushless motor and indirect drive.
- Description
- Specifications
Description
HBL850 Brushless Titanium Gear High Speed Digital Cyclic Servo

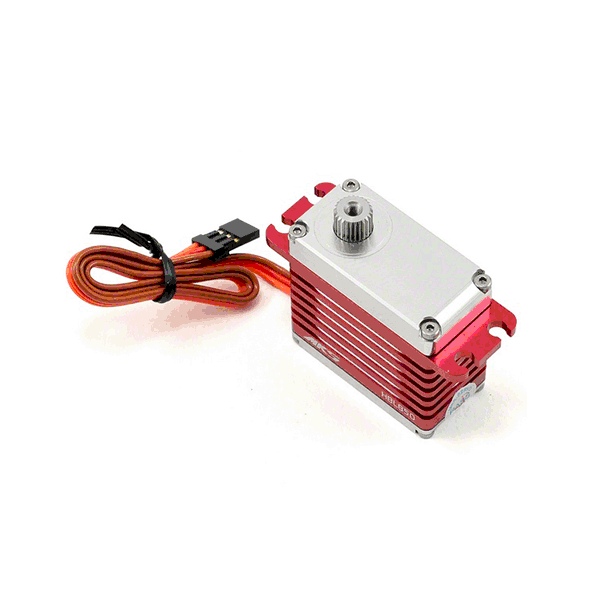

This is the MKS HBL850 Brushless Titanium Gear High Speed Digital Cyclic Servo. The servo has high speeds and torque. It has a brushless motor and indirect drive. It weighs 73 grams and is 40x20x38.5mm.
| Specifications | |
| Dead Band | 0.0008ms (Default) |
| Control System | +Pulse Width Control |
| Working Frequency | 1520μs / 333hz |
| Operating Voltage | 6 ~ 8.4 Volts |
| Operating Temperature Range | -10 to + 60 Degree C |
| Operating Speed | |
| @6V | 0.1 sec/60° degrees at no load |
| @7.4V | 0.079 sec/60° degrees at no load |
| @8.4V | 0.071 sec/60° degrees at no load |
| Stall Torque | |
| @6V | 252 oz-in (18.2 kg/cm) |
| @7.4V | 312.46 oz-in (22.5 kg/cm) |
| @8.4V | 345.79 oz-in (24.9 kg/cm) |
| Specs | |
| 360° Modifiable | NO |
| Motor Type | Brushless Motor |
| Potentiometer Drive | Indirect Drive |
| Bearing Type | Dual Ball Bearings |
| Gear Type | Metal Gears |
| Connector Wire Length | 24.0 cm (9.4 in) |
| Dimensions | 40x20x38.5mm |
| Weight | 73g |
