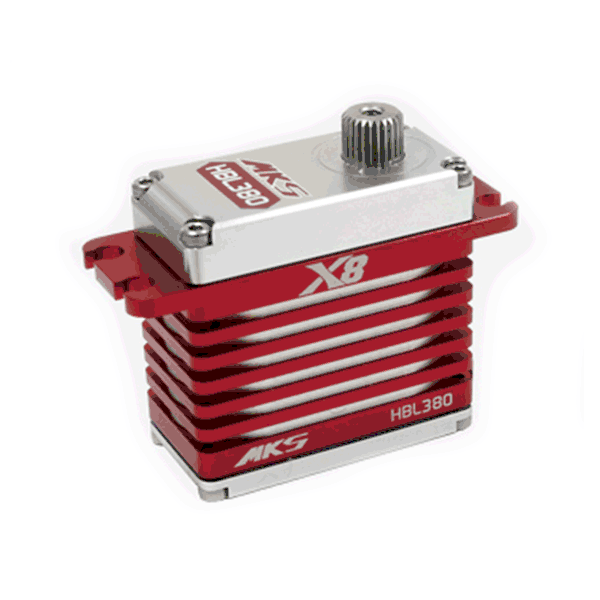

HBL380 High Voltage Brushless Servo
$236.24
Product lead time varies.
Contact us for expected delivery date.
HBL380 High Voltage Brushless Servo – Featuring a one-piece aluminum CNC casing and safe for operating voltages up to 8.4v; designed for large models and high-stress applications.
- Description
- Specifications
Description
HBL380 High Voltage Brushless Servo featuring a one-piece aluminum CNC casing and safe for operating voltages up to 8.4v (an unregulated 2s LiPo), the all new MKS HBL 380 is the latest offering in the X8 Series of high-performance servos designed for large models and high-stress applications.
HBL380 High Voltage Brushless Servo has the highest torque ratings of all the X8 Series servos.
| Specs | |
| Stall Torque (6v) | 430.51oz/in (31kg/cm) |
| Stall Torque (7.4v) | 541.61 oz/in (39 kg/cm) |
| Stall Torque (8.4v) | 569.38 oz/in (41 kg/cm) |
| Operating Speed (6V) | 0.114 sec/60° |
| Operating Speed (7.4V) | 0.092 sec/60° |
| Operating Speed (8.4V) | 0.082 sec/60° |
| Weight | 73g |
