Description

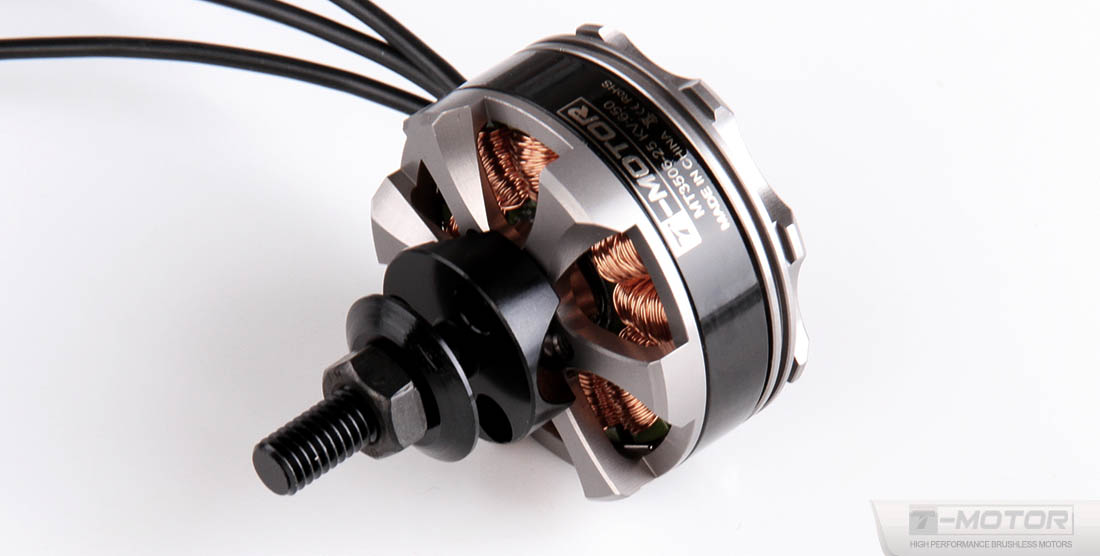

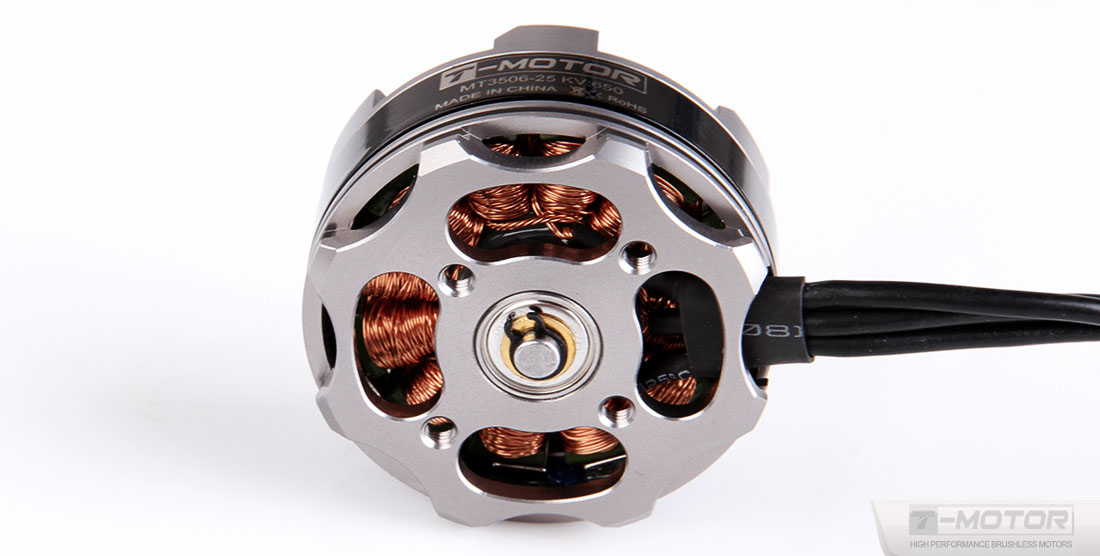

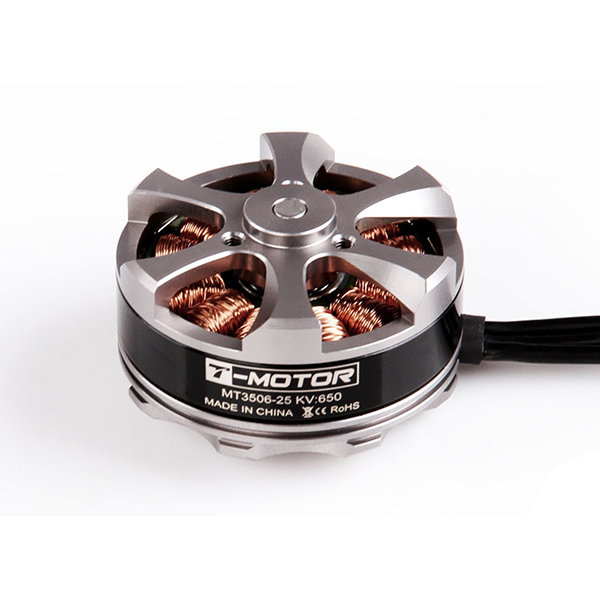

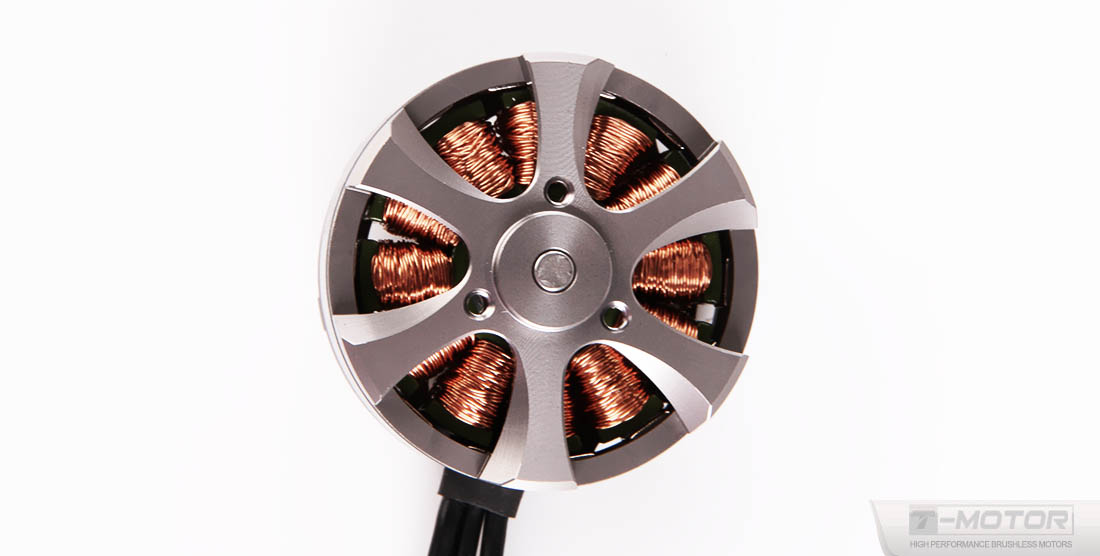

Is a high-performance, brushless motor designed for use on multi-rotor aircraft such as quadcopters and hexacopters. These motors are designed to operate smoothly and be well balanced directly out of the box. The MT3506 is part of Tiger Motors MT Series – Professional line of motors.
MT3506 Features
- Precision workmanship
- Smooth running
- Well-balanced
- EZO Bearings
The MT3506 comes with a higher level EZO bearing which helps improve the life of he motor. EZO Bearings to ensure it is smooth running and well balanced right out of the box. The design also cuts down on vibrations that negatively affect aerial video and autopilot inertial sensors. Estimated flight time on bearings is 60-80 hours. Recommendation is to change bearings after 60 hours of flight.
Motor has epoxy-coated Kawasaki stator plates for low eddy current loss, oxygen-free copper windings for low resistance, and N45UH high-temperature Neodymium magnets.
This highly efficient motor can maintain good performance up to 180° C. Backed by a two-year manufacturer’s warranty on materials and workmanship.
MT3506 Recommended for use with 3 to 4S LiPo and 10×3.8 to 14×4.7 props.
About Tiger Motors (T-Motor)
Tiger Motors specializes in manufacturing motors, esc, propellers and other related UAV products. Tiger Motors aims to provide the safest propulsion system for commercial and professional applications. Tiger Motors has a strong R & D team who have a passion for innovation.
