Description
Overview

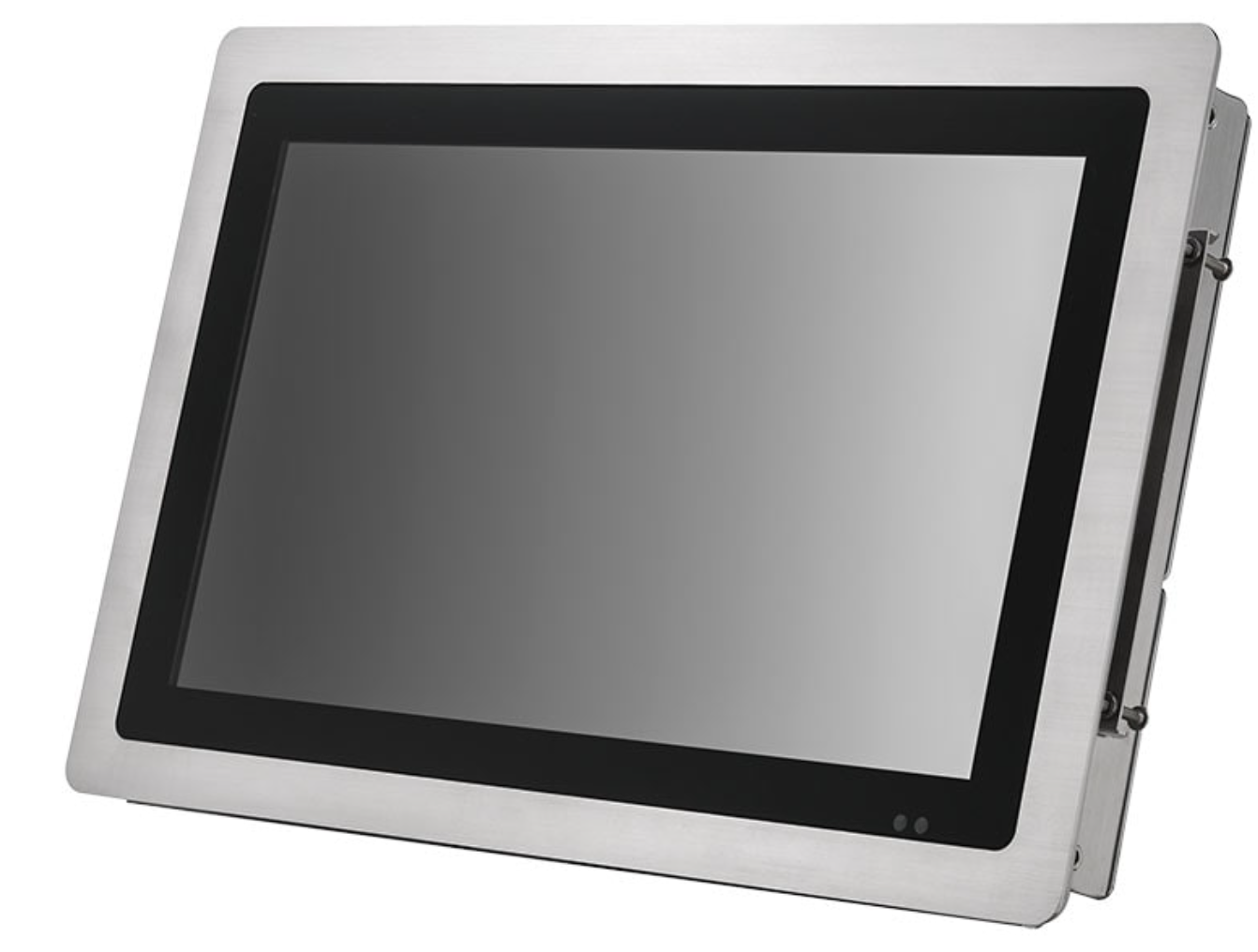

The 1579GFP is one of the most versatile displays in Xenarc Technologies’ lineup — a 15.6″ 1000 NIT, 16:9 IPS touchscreen rated IP69K and IP66/NEMA4X, housed in a rugged SUS316 stainless steel enclosure. The IP69K rating means it can withstand close-range, high-temperature, high-pressure spray-down sanitization, while the SUS316 housing resists harsh detergents, acidic/alkaline disinfectants, and seawater — satisfying the sanitation demands of food processing, beverage production, pharmaceutical, and chemical facilities.
With an operating range of -22°F to 185°F (-30°C to 85°C), UV-resistant construction, and an anti-glare, anti-fog AR-coated touchscreen, the 1579GFP is equally at home in marine, outdoor, or sub-freezing environments. It can be deployed as a stand-alone or panel-mount monitor (brackets included), with HDMI, DisplayPort, and VGA inputs covering virtually any video source.
Highlights
- Sunlight Readable — ready for all environments
- Waterproof/Dustproof — built to stringent IP69K standards
- UV Resistant — great for outdoor installs
- AG Touchscreen w/ Anti-Fog AR Coating — optically enhanced clarity
- Multiple Inputs — HDMI, DisplayPort, and VGA
- Automatic Dimming — built-in ambient light sensor
- Superior Image — scalable resolution up to 1080P
- Extended Temperature Range — -30°C to 85°C
Key Features
- IP69K high-temp/high-pressure spray-down protection (whole unit)
- IP66 / NEMA4X rated water and dust resistance (whole unit)
- 1,000 NIT sunlight readable, long-life LED backlight
- Wide-viewing-angle IPS LCD panel (178°/178°)
- Automatic + manual backlight adjustment (ambient light sensor / rear buttons)
- Projected capacitive multi-touch touchscreen (USB)
- UV resistant for outdoor installs
- Anti-glare touchscreen with anti-fog AR underside coating
- Plug-and-play with Windows 7+ and Android (drivers available for other OS)
- Multi-monitor touchscreen support
- HDMI (HDCP), DisplayPort, and VGA (15-pin D-SUB) inputs
- 1920×1080 native resolution, 16:9 aspect ratio
- AISS — Advanced Image-Scaling and Shaping
- Last input/power setting memory, IR remote control
- Auto power-on upon signal detection, vertical image flip
- VESA 75x75mm and 100x100mm mounting holes, panel-mountable with included hardware
- Ruggedized SUS316 stainless steel enclosure — chemical & vandal resistant
- IK07 impact resistant, 9–36V DC input
Ideal Applications
- Transportation: Marine, air, heavy vehicles, mining, weigh stations, fleet management, telematics, in-car computing, public transit, cargo
- System Integration: Food processing, machinery controls, factory automation, environmental monitoring, military, smart home
- Point of Sale: Hospitality, digital signage, self-service & outdoor kiosks, casino
- Data Monitoring: Cloud/IoT, medical, logistics, inventory, oil & gas/utilities, law enforcement, broadcasting, veterinary, FPV
- Broadcast & Production: Broadcast stations, mobile production vehicles, field-rugged deployment, studio video production
Full Specifications
- Screen Size: 15.6″ diagonal (16:9)
- Resolution: 1920 x 1080 Full HD (5,760 x 1080 = 6,220,800 dots)
- Supported Resolution: 640×480 ~ 1920×1080
- Brightness: 1000 cd/m²
- Contrast Ratio: 1000:1
- Viewing Angle: 178° horizontal, 178° vertical
- Response Time: 25ms (Tr+Tf, typ.)
- Touchscreen Interface: USB
- Operating Voltage: DC 9V–36V
- Power Supply: DC 12V, ~23.5W consumption
- Operating/Storage Temp: -22°F to 185°F (-30°C to 85°C)
- Vibration: 5-500Hz, 1.0Grms (IEC 60068-2-64)
- Shock: 10G peak, 11ms duration (IEC 60068-2-27)
- MTBF: 55,000+ hrs (6.2+ years continuous use)
- Certifications: FCC, CE, IK07 impact resistant, RoHS, REACH
- Dimensions: 428 x 277 x 46mm
- Weight: 12.39 lb
What’s in the Box
- 5m DC power lead (optional AC or cigarette lighter adapter)
- 1.8m HDMI cable
- 1.8m USB cable
- IP69K/IP66 waterproof rubber cable grommets (multiple sizes)
- Panel mount brackets
Warranty
36-month / 3-year warranty, plus 30-day no-dead-pixel guarantee
