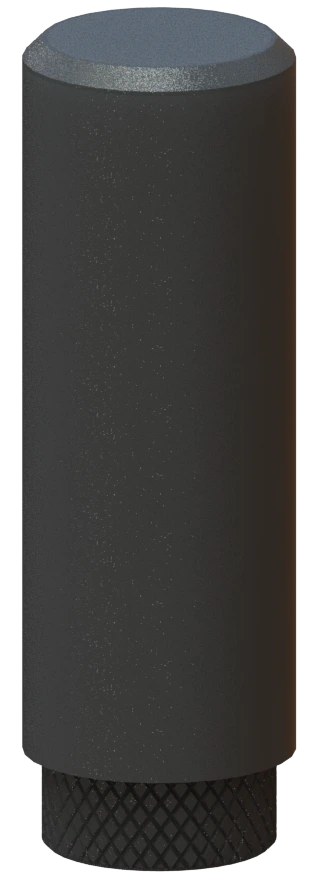

GPS Passive L1 Antenna, +1.5 DBIC Gain, TNC(m)
Capable of receiving a clear GPS signal even in congested and noisy RF environments.
View cart
- Description
Description
GPS Passive L1 Antenna, +1.5 DBIC Gain, TNC(m) is designed and manufactured by Southwest Antennas.
This high-performance and ruggedized antenna is designed specifically for GPS receivers, manpack, hand-held, UAV systems, small form factor radio systems, and more.
Key features include a quadrifilar helical antenna design, excellent axial ratio, compact size, and light weight. These features make the antenna capable of receiving a clear GPS signal even in very congested and noisy RF environments.
TNC(m) non-rotating RF connector; IP67 rated.
Key Features
- GPS L1 frequency ±10.23 MHz Bandwidth
- Small form factor
- Ultra light-weight design
- Ruggedized design
- Ground plane independent
- TNC(m) interface
- Exceptional pattern bandwidth
- Waterproof to 20 Meters (65.6 ft.)
- Applications:
- UAV
- UGV
- Military & security
- Navigation systems
Specifications
| Parameter | Value | Units | Tolerance |
|---|---|---|---|
| Antenna Pattern | Hemispherical Antenna | ||
| Frequency Band | GPS L1 | ||
| Impedance | 50 | Ohms | |
| Minimum Frequency | 1.565 / 1,565 | GHz / MHz | |
| Maximum Frequency | 1.585 / 1,585 | GHz / MHz | |
| Frequency Bandwidth | 0.02 / 20 | GHz / MHz | |
| Maximum VSWR | 2.0:1 | ratio | |
| Maximum Gain | 1.50 | dBic | ±0.5 dB |
| Axial Ratio | 1.0 | dB | |
| Polarization | RHCP | ||
| Horizontal (AZ) Beamwidth | 140 | degrees | |
| Vertical (EL) Beamwidth | 140 | degrees | |
| Radome Material | Delrin 527 UV stable | ||
| Color | Black | ||
| RF Connector Type | TNC(m) Non-Rotating | ||
| IP Rating | IP67 (mated and unmated) | ||
| Product Height | 2.130 / 54.102 | inches / mm | ± .02 |
| Product Diameter | 0.700 / 17.780 | inches / mm | |
| Product Weight | 1.10 / 31.18 | oz / grams | |
