Single Element Panel Antenna, 902-928 MHz, 9 dBi, SMA(f) Connector
$578.00
Designed for ISM Band communication for UAV & UGV Ground Station applications.
View cart
- Description
Description

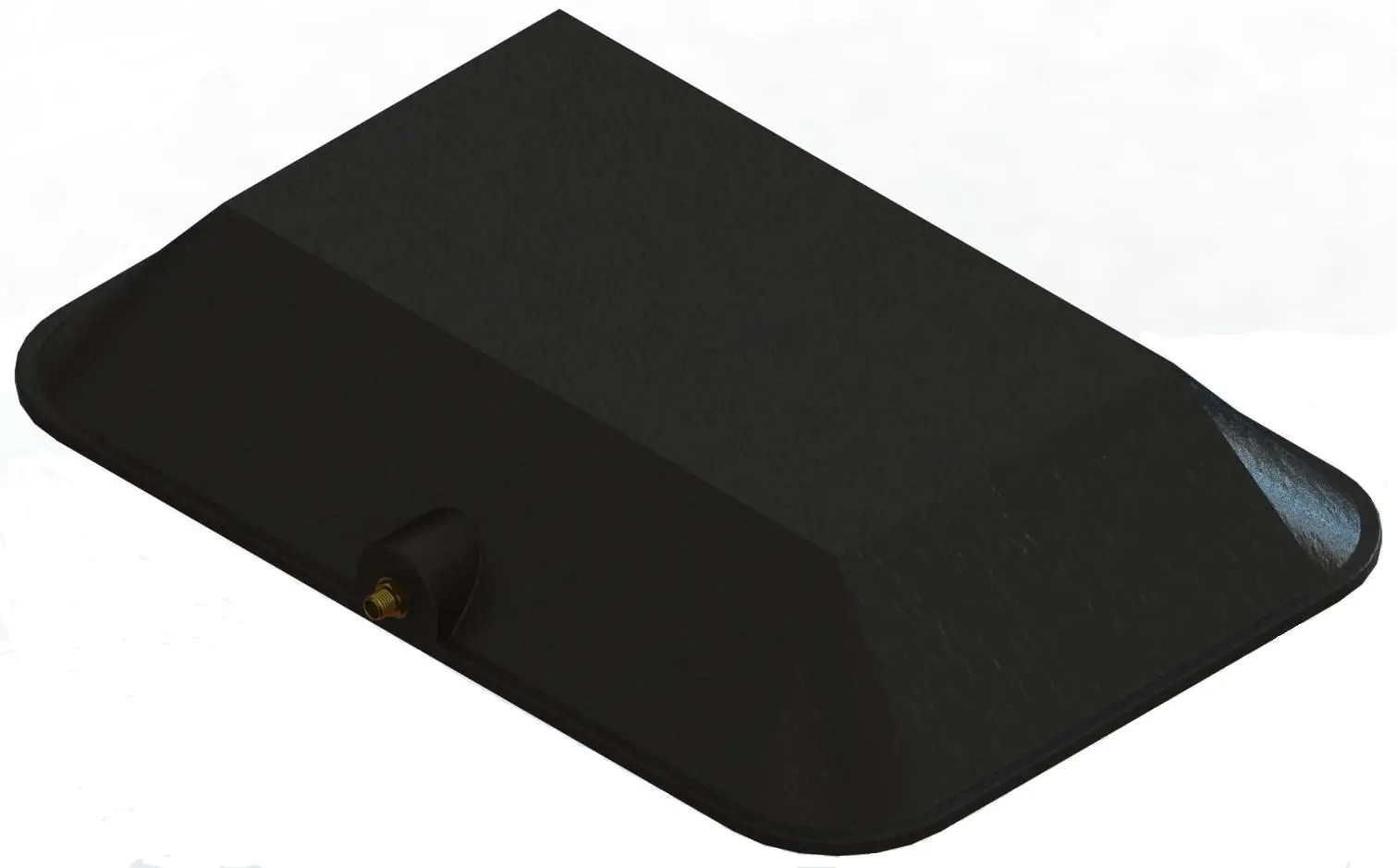

Single Element Panel Antenna, 902-928 MHz, 9 dBi, SMA(f) Connector by Southwest Antennas.
SMA(f) RF Connector.
Features
- ISM Band Coverage
- 902 – 928 MHz
- 9 dBi
- Black Kydex Radome
- Rugged Construction
- Designed for ISM Band communication in the following markets:
- Law Enforcement
- Surveillance
- UAV & UGV Ground Stations
Specifications
| Parameter | Value | Units | Tolerance |
|---|---|---|---|
| Antenna Pattern | Directional Antenna | ||
| Impedance | 50 | Ohms | |
| Minimum Frequency | 0.902 / 902 | GHz / MHz | |
| Maximum Frequency | 0.928 / 928 | GHz / MHz | |
| Frequency Bandwidth | 0.026 / 26 | GHz / MHz | |
| Maximum VSWR | 1.5:1 | Ratio | |
| Maximum Gain | 9 | dBi | |
| Polarization | Vertical | ||
| Maximum RF Input Power | 100 | Watts | |
| Horizontal (AZ) Beamwidth | 55 | Degrees | |
| Vertical (EL) Beamwidth | 65 | Degrees | |
| Ground Plane Required | No | ||
| Radome Material | Kydex | ||
| Color | Flat Black | ||
| Maximum Wind Velocity | 100 / 161 | mph / kph | |
| RF Connector Type | SMA(f) | ||
| Product Length | 11.160 / 283.464 | inches / mm | ±0.13″ |
| Product Width | 7.680 / 195.072 | inches / mm | ±0.13″ |
| Product Height | 1.970 / 50.038 | inches / mm | ±0.13″ |
