Cylindrical Sector Antenna, 2.1-2.5 GHz, 12 dBi
$935.00
Directional sector antenna housed in a cylindrical radome that features an integrated, weatherproof sealed spring base.
- Description
Description
Cylindrical Sector Antenna, 2.1-2.5 GHz, 12 dBi by Southwest Antennas.

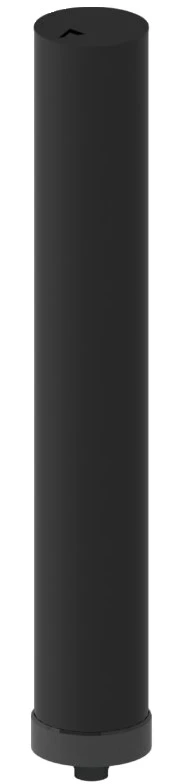

Southwest Antennas Part # 1034-006 is a 2.1 – 2.5 GHz directional sector antenna housed in a cylindrical radome that features an integrated, weatherproof sealed spring base with 4x #6-32 UNC threaded holes for secure mounting. A directional arrow on the top of the radome denotes direction of transmit or receive direction.
TNC(m) RF Connector.
Features
- 117 Degree Sector Coverage
- 2.1 – 2.5 GHz
- Transmit & Receive
- 12 dBi Gain
- >15 dBi Front to Back Ratio
- Sealed Spring Base
- All Weather Operation
- 20 Watt Power Handling
- Arrow on top cap denotes transmit and receive direction
Specifications
| Parameter | Value | Units | Tolerance |
|---|---|---|---|
| Antenna Pattern | Directional Antenna | ||
| Frequency Band | S | ||
| Impedance | 50 | Ohms | |
| Minimum Frequency | 2.1 / 2,100 | GHz / MHz | |
| Maximum Frequency | 2.5 / 2,500 | GHz / MHz | |
| Frequency Bandwidth | 0.4 / 400 | GHz / MHz | |
| Maximum VSWR | 2.0:1 | Ratio | |
| Maximum Gain | 12 | dBi | |
| Polarization | Vertical | ||
| Maximum RF Input Power | 20 | Watts | |
| Horizontal (AZ) Beamwidth | 117 | Degrees | |
| Vertical (EL) Beamwidth | 18 | Degrees | |
| Ground Plane Required | No | ||
| Color | Black | ||
| Spring or Gooseneck | Spring | ||
| Spring Length | 1.130 / 28.702 | inches / mm | |
| Spring Diameter | 2.508 / 63.703 | inches / mm | |
| Mounting Holes or Studs | 4x #6-32 UNC | ||
| Maximum Wind Velocity | 75 / 120 | mph / kph | |
| RF Connector Type | TNC(m) | ||
| RF Connector Features | Black Chrome | ||
| Product Height | 18.810 / 477.774 | inches / mm | ±0.13″ |
| Product Diameter | 2.625 / 66.675 | inches / mm | +.020″ / -.000″ |
| Product Weight | 21.30 / 603.84 | oz / grams | |
About Southwest Antennas
Founded in 2005 and headquarted in San Diego, California, Southwest Antennas manufactures over 2,000 RF and microwave antennas of all types operating in frequencies up to 8.5 GHz, and offers a full range of complementary accessory products such as antenna mounting solutions, block downconverters, low noise amplifiers, and filter modules that cover a wide variety of applications.
