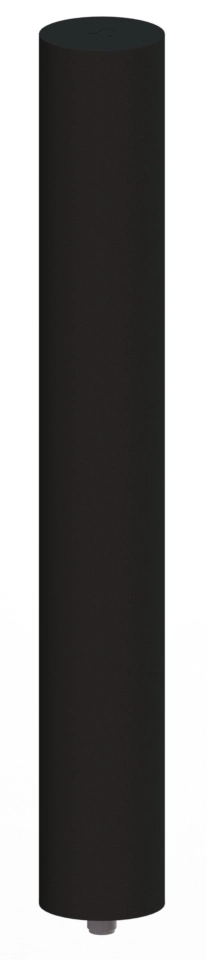

Cylindrical Sector Antenna, 2.025-2.070 GHz, 12 dBi
$650.00
105 Degree Sector Coverage, Transmit & Receive, All Weather Operation 20 Watt Power Handling.
- Description
Description
Cylindrical Sector Antenna, 2.025-2.070 GHz, 12 dBi by Southwest Antennas.
Type-N(f) RF Connector.
Features
- 105 Degree Sector Coverage
- 2.025 – 2.070 GHz
- Transmit & Receive
- 12 dBi Gain
- >15 dBi Front to Back Ratio
- All Weather Operation
- 20 Watt Power Handling
- Arrow on top cap denotes transmit and receive direction
Specifications
| Parameter | Value | Units | Tolerance |
|---|---|---|---|
| Antenna Pattern | Directional Antenna | ||
| Frequency Band | S | ||
| Impedance | 50 | Ohms | |
| Minimum Frequency | 2.025 / 2,025 | GHz / MHz | |
| Maximum Frequency | 2.07 / 2,070 | GHz / MHz | |
| Frequency Bandwidth | 0.045 / 45 | GHz / MHz | |
| Maximum VSWR | 2.0:1 | Ratio | |
| Maximum Gain | 12 | dBi | |
| Polarization | Vertical | ||
| Maximum RF Input Power | 20 | Watts | |
| Horizontal (AZ) Beamwidth | 105 | Degrees | |
| Vertical (EL) Beamwidth | 19.7 | Degrees | |
| Ground Plane Required | No | ||
| Color | Black | ||
| Mount Style | RF Connector | ||
| Maximum Wind Velocity | 75 / 120 | mph / kph | |
| RF Connector Type | Type-N(f) | ||
| Product Height | 18.810 / 477.774 | inches / mm | ±.13″ |
| Product Diameter | 2.625 / 66.675 | inches / mm | +.020″ / -.000″ |
| Product Weight | 14.40 / 408.23 | oz / grams | |
