12.0mm 32HFOV f/2.8 (m12) Lens

Description

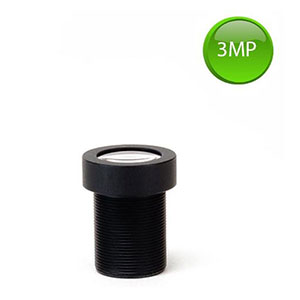

12.0mm 32HFOV f/2.8 (m12) Lens by MAPIR and Peau Productions.

Camera Supported: Kernel 3.2MP

Compatible with  MAPIR cameras that have a matching sensor resolution.

For Kernel, use the 14MP lenses with the 14.4MP sensor, and the 3MP with the 3.2MP sensor. For Survey3, use the 12MP lenses.

Specifications

Lens Focal Length: 12.0mm
35mm Equivalent Focal Length: 58.08mm
Native Sensor Size Supported: 1/1.8″
Aperture: f/2.8
Field of View: 41 x 32 x 25 degrees (Diagonal, Horizontal, Vertical)
Filter Installed: No Filter
Megapixel Rating: 5.0MP
Optical Distortion: <-0.2%
Hyperfocal (Infinity) Focus Distance: 337.93 inches (28.16 feet), 858.34 cm (8.58 m)
Lens Construction: 7G+8E (All Glass Elements)
Weight: 10g
Dimensions: 19.37mm Length, 15.5mm Diameterr
