Description
Ni030 Neutral Density Filter

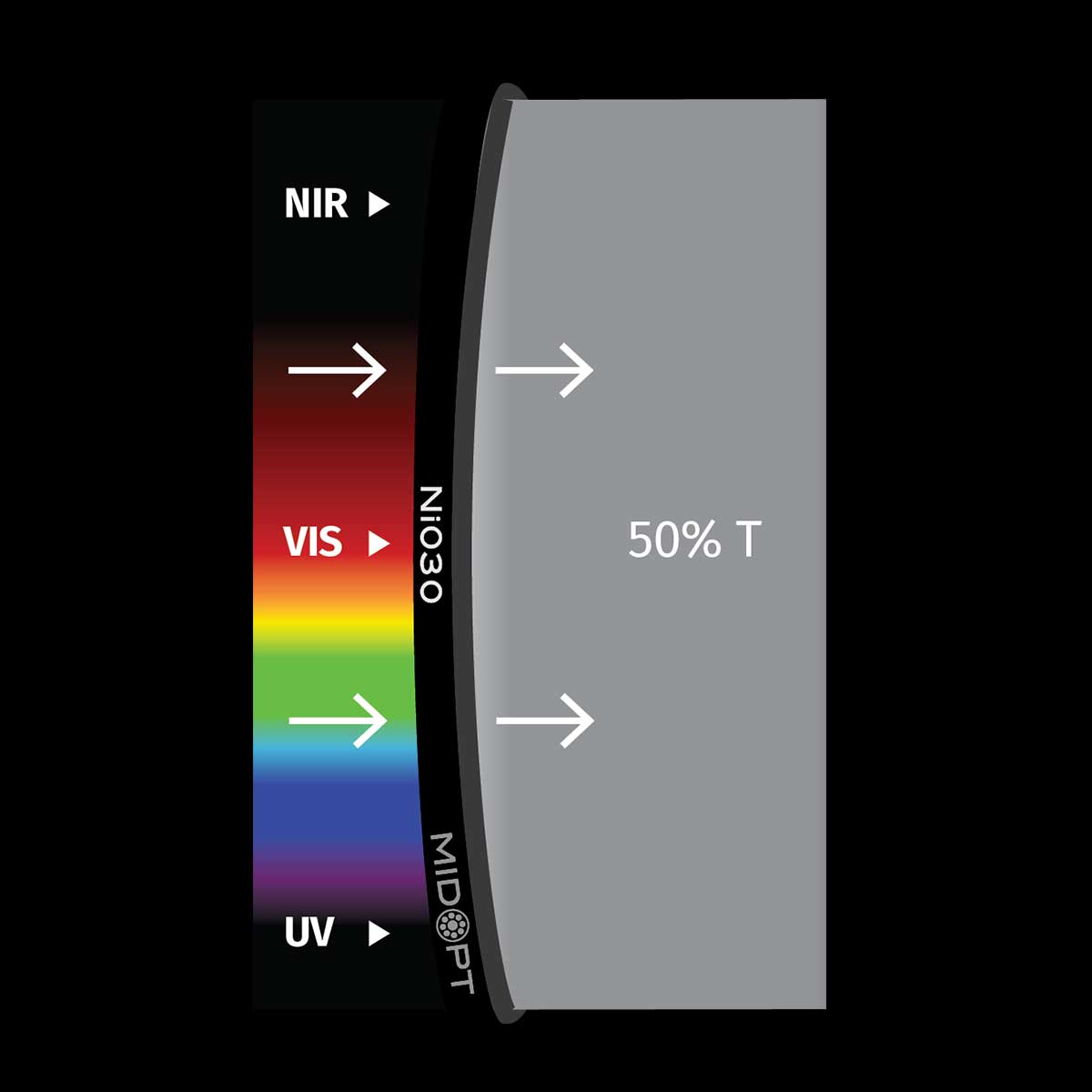

Ni030 filters feature uniform attenuation simultaneously over the visible and near-IR range that is imaged by most industrial CCD/CMOS cameras. That is, regardless of wavelength within this range, approximately 50% of the light will be transmitted while less than 10% will be reflected back towards the source or subject. These filters include identical male and female threads on either end so that they can be stacked with other ND filters to achieve various optical densities.

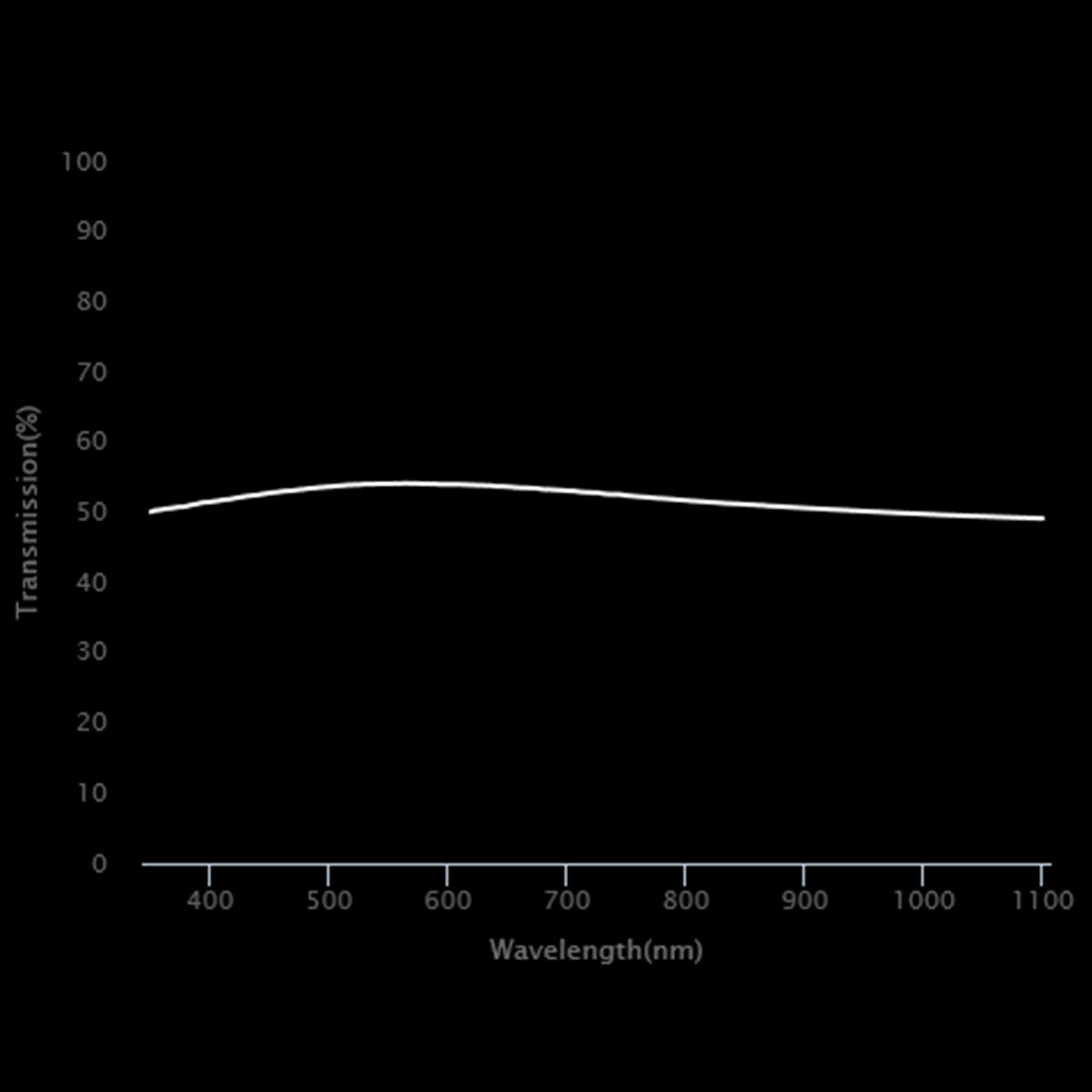

- Useful Range : 400-1100nm
- Optical Density : 0.3
- Transmission: 50%
- Tolerance : +/- 5.00%
- Surface Quality : 40/20
Ni Series – Broad Spectrum; VIS/NIR
- Low reflectivity filter effective from 400-1100nm
- Available in optical densities ranging from 0.3-1.2
- Coated on low-expansion, heat-resistant Borofloat glass
Neutral Density Filters serve as “sunglasses” for your system and can be used with monochrome or color cameras. Designed to reduce light intensity neutrally over a specific wavelength range without affecting image color or contrast.
- Available in a variety of optical densities
- Reduce light intensity while maintaining a wide aperture and shallow depth of field
- Minimize pixel saturation
- Can be stacked with other Neutral Density Filters to test various optical densities
- Exceptional surface quality; 40/20 scratch/dig
Ni030 Neutral Density Filter Applications
Applications include imaging in intense lighting situations (i.e. molten metal and welding) outdoor aerial imaging and photography. Neutral Density Filters help reduce shutter speed to create blur, preventing a “jello” effect in aerial imaging.
Mount & Size Options
In-stock, ready-to-ship Neutral Density Filters are available in Threaded Mounts, sizes M13.25 to M105; 25.4 C-Mount; Slip Mounts; or Unmounted. Custom shapes and sizes are available.
